Concrete Pickleball Court Installation
Backyard, HOA, church, and private-club pickleball courts across the Charlotte metro — regulation 30×60 slab, engineered base, sawcut control joints, embedded net-post sleeves, and a spec written down before the pour. Zero deposit, licensed and insured, pay-on-completion.
Get your free quote
We respond in less than 2 hours.
Recent Pickleball Court Projects
Real customer jobs we've poured. Swipe through and picture yours next.

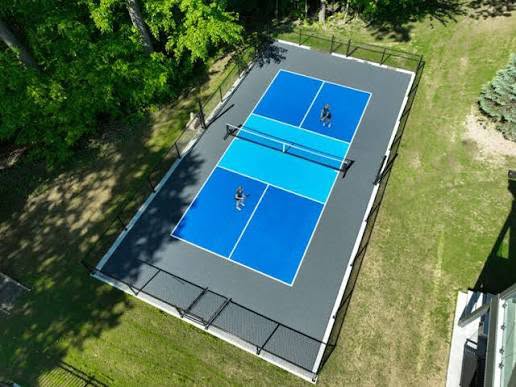

Pickleball Court
Recent Job
Real Projects We've Completed
A sampling from the Charlotte-metro portfolio — driveways in Ballantyne, patios in SouthPark, porches in Matthews, pool decks in Weddington. Slide each pair below to see the actual before-and-after we shot on the job site.
Backyard Patio
Full tear-out, new pour with brick-border detail
Stamped Pool Deck
Weathered deck replaced with textured stamped pour
Front Porch & Steps
New entry pad plus poured steps to the door
On paper a pickleball pad is one of the friendlier slabs to pour — rectangular, flat, no vehicle load, and once the acrylic is on top the freeze-thaw exposure is mild — but the failures we get called out to across Mecklenburg and Union counties all trace to the same short list of shortcuts: undersized pad, wrong slope direction, no isolation between the slab and the fence footings, mesh where the spec called for rebar, or a base that never hit a real compaction standard. Regulation playing area is 20 by 44 feet, but the pad you should actually order is 30×60 (1,800 SF minimum), with 34×64 preferred anywhere you want tournament-comfortable run-back and side buffers. The extra concrete adds very little to the overall build cost and it is the difference between a court that plays like a real court and one that feels cramped from opening day.
Local Concrete Charlotte scopes pickleball builds from SouthPark and Myers Park backyards out to HOA amenity centers in the Ballantyne and Providence corridors and private courts in Matthews, Mint Hill, Weddington, and Huntersville. Each project opens with a site walk covering pad orientation (long axis north-south so the sun stays off the servers' eyes), grade and drainage, the local red-clay subgrade condition, tree and root proximity, access for the ready-mix truck, and how the pad gets finished after cure — acrylic color coat by a court-surfacing crew is the standard next step. You get a written spec before any dirt moves covering pad dimensions, slope, base build, thickness, reinforcement, joint pattern, mix design, net-post sleeves, fence-post isolation, and finish. Nothing due up front, nothing vague on the invoice, and no marketing gloss on the spec sheet.
Pickleball Court Slab Specs We Pour
Whether the acrylic on top lasts 8-12 years or gives out inside 3 is decided by the pad underneath. Nail the size, slope, thickness, and reinforcement and the surfacing coat holds; miss any of them and it does not.
- Standard residential court — 30×60 footprint (1,800 SF), a 20×44 playing box framed by 5-ft margins on the sides and 8-ft clearance behind each baseline
- Tournament-comfortable court — 34×64 footprint (2,176 SF), stretched to 7-ft side margins and 10-ft baseline clearances
- Two-court side-by-side — 60×64 footprint (3,840 SF) with a 10-ft dividing strip down the middle
- Multi-sport pad — pickleball striping combined with a hoop key, typically running 30×60 through 40×70 based on how the goal is set up
- Driveway-conversion court — a current driveway pushed out or repoured until it lands at court measurements
- HOA and church rec courts — 30×60 or 34×64 including extra sleeves for four-court fence runs
Every pad we set shares the same underlying spec: 4-inch minimum thickness (5-inch on any court running fence posts embedded through the pad), 4,000 psi mix, #4 rebar on 16-inch centers or wire fabric mat as a written second choice, sawcut control joints on a 12×12 grid, 1% side-to-side slope (never net-to-net), and cast-in-place net-post sleeves so the acrylic coat can wrap the sleeve without cracking around it.
Base Prep, Drainage, and Why Most Courts Crack Early
What kills pickleball pads early across the Piedmont is almost always the base. Pour straight onto unimproved red clay or a token 2 inches of loose stone and settlement cracks show up inside the first year — and the moment those cracks reach the acrylic finish the entire court has to be resurfaced, not patched.
Our base spec: strip 8-10 inches of topsoil, compact the subgrade to 95% Proctor, install and grade 4-6 inches of #57 washed stone as a drainage layer, compact again in 2-inch lifts, then pour on top. The stone layer is doing two jobs at once — spreading point loads from any future fence footings and giving groundwater a path out from under the slab instead of sitting there through a wet Charlotte winter.
Slope direction gets underestimated more often than anything else on the plan. The pad has to fall 1% (about 1 inch of drop over 8 feet) side-to-side, never net-to-net. Slope it toward the net and every thunderstorm leaves a puddle sitting across the entire playing surface, cutting years off the acrylic. Perimeter drainage — a French drain on the low side, or at bare minimum a graded swale that carries water 10 feet clear of the pad — is what keeps the base dry through our spring rains and hurricane-season downpours.
Get your free quote
We respond in less than 2 hours.
Why Local Concrete Charlotte?
- 01.Charlotte-metro crews, one trade
- 02.Line-item pricing, nothing hidden
- 03.One foreman from bid to walkthrough
- 04.Pay after the pour, never before
Our Concrete Installation Process
Every pickleball court we pour runs through the same 18 checkpoints — from the on-site consult through the final walkthrough.
Consultation & Estimate
A crew lead walks your Charlotte-metro pad, shoots laser measurements across the footprint, notes tear-out volume plus pump-truck approach from the curb, and drops a fixed all-in bid in your inbox by the next business day.
Logistics & Scheduling
Crew calendar, pump availability, and Piedmont radar all get cross-referenced before your pour date locks in. Any front tracking through the 485 corridor inside a 48-hour window triggers a proactive reschedule call — never a rain-day gamble.
Custom Mix Design
Charlotte summers push 91F and the region sees 22 freeze-thaw cycles a year — both demand different mix chemistry. The batch plant hears from us the afternoon before with air-temp targets, slump range, retarder dose, and entrained-air percentage dialed in.
Site Preparation
Three-quarter-inch plywood gets staged over any turf the pump line crosses, ornamental beds around the pad get tarped, and the pump driver confirms his Mecklenburg approach route with the foreman before wheels touch the drive.
Demolition
Anything under six inches gets broken up by hydraulic hammer; reinforced sections get saw-cut into panels and pried out. A skid-steer loads every fragment straight into the dump truck — no rubble pile lingering on your property overnight.
Grading & Forming
A compacted #57 stone base of four to six inches goes down in two lifts on every subgrade — critical over Piedmont red clay, which swells wet. Laser confirms a minimum 1/8-inch-per-foot fall away from the foundation, then 2x forms stake off at 32-inch centers.
Reinforcement
Grade-60 #4 rebar ties on 18-inch centers into a full grid, seated on chairs so the steel actually rides mid-slab where tension loads live. Red-clay shrink-swell chews through wire mesh in this region — we stopped installing mesh after enough callbacks to know better.
Pre-Pour Inspection
You and the foreman walk the formwork together — form elevations rechecked with the laser, rebar count photographed for the job file, drainage pitch verified end-to-end. This is the last window to catch anything before post-pour changes turn into demo invoices.
Slump Testing
Every truck arriving gets its first yard cone-tested against the mix ticket before anything moves further down the chute. Numbers outside spec send that truck back to the plant — the pour waits, the slab never inherits a compromised batch.
Placement
The pump line advances one direction across each slab section while a screed follows behind in real time, keeping the leading edge wet-on-wet. No mid-slab pauses, no stiffened edges left waiting to bond against fresh concrete from the next truck.
Bull Floating
Immediately behind the screed, the bull-float rides across to press aggregate down and float cement paste to the top. That first surface closure is what decides whether a low-angle Carolina winter sun reveals a flat pour — or a wavy one.
Edging & Jointing
Perimeter edges get hand-tooled round to shed impact loads, and saw-cut control joints go in within a four-to-eight-hour finishing window. Leave it longer over Charlotte clay and random cracks beat you to it. Joint spacing in feet mirrors slab thickness in inches, aligned to columns.
Fresno Finish
A long-handled Fresno makes a second pass to tighten the surface and pull any remaining waves flat. That judgment call — how many passes, when to stop — is exactly what separates a professional finish from a weekend attempt.
Decorative Detailing
Broom texture drags perpendicular to the direction cars or feet travel, for grip. Stamped patterns get pressed into concrete still holding fingerprint firmness. Exposed aggregate runs a retarder and wash sequence timed to that day's evaporation rate.
Form Removal
Twenty-four hours is the earliest forms come off — pull sooner and green edges spall, pull later and the stakes fuse to concrete. Flash gets chipped clean, a final chamfer tooled on every exposed edge, then lumber loaded and gone that afternoon.
Final Walkthrough
Once the slab is finished, you and the foreman walk it together. Every question — a joint that looks wide, a spot that reads high, a texture line — gets addressed on the spot. Your invoice only hits after you sign off, never before.
Usage Guide
A printed care sheet stays with you: foot traffic at 24 hours, passenger vehicles at 7 days, heavy loads at the full 28-day cure. Also included — a written no-deicing-salt warning for the first winter, and a reseal window for any stamped surface.
Project Completion
Debris rolls off the truck, your property gets left tidier than we found it, and a written workmanship warranty lands in your email. That sequence — walkthrough signed, site cleared, warranty delivered — is what actually finishes a pour on our books.
Net Posts, Fence Footings, and Isolation Detail
Two details separate a pad built for a real installation from a generic slab that turns into a problem the day the fence crew shows up.
Net-post sleeves get cast into the pad during the pour, not drilled in later. We embed schedule-40 or schedule-80 steel sleeves (sized to whichever specific net-post system the owner has picked — usually 2-3/8 inch or 3-1/2 inch OD) at exact court centerline, 22 feet from each baseline, wrapped in a foam collar so any slab movement will not crack around the sleeve. Skip that step and rely on a crew drilling sleeves into cured concrete a few weeks later and you have the fastest known way to spider-crack a brand-new pad.
Fence posts are the other detail. On any court where the perimeter posts drop through the pad or right up against its edge, an isolation joint has to sit between the slab and each fence footing. Fence posts move on their own timing as the clay expands and contracts through the seasons — tie them rigidly to the pad and a crack radiating from every post is guaranteed within two winters. The correct detail is fence footings poured as separate concrete columns 6-12 inches outside the slab edge with a joint sealant between the pad and any footing that sits close enough to matter.
Finish, Surfacing Handoff, and Timeline
The slab finish on our end is a light broom or a steel-trowel-then-broom — not a hard trowel, which polishes the surface too tight for acrylic to bond into. The pad hands off to the surfacing crew with a written cure and moisture-test protocol so they can move without endless back-and-forth about readiness.
Cure and dry times are non-negotiable. Acrylic pickleball surfacing systems (nova, plexipave, deco color, and equivalents) will only bond to a slab that has reached a specific moisture level — typically 28 days minimum cure plus a calcium-chloride or in-situ RH test showing less than 3 lbs / 1000 SF / 24 hours or below 75% RH. Rushing the coating is the single biggest reason surfacing systems fail inside the first year, and the fault is not with the concrete crew — it is with a surfacing crew being pushed to start before the pad is actually ready.
Slab timeline: 1 day layout and dig, 1-2 days base build and compaction, 1 day form and reinforcement set with inspection, 1 day pour and finish, then 28 days cure before surfacing. Total slab-only project window is 5-7 working days plus cure. Full turnkey installation (slab + surfacing + net + fence) is typically 6-10 weeks depending on surfacing crew availability and weather.
Why Homeowners, HOAs, and Rec Facilities Work With Us
Local Concrete Charlotte pours residential and light commercial jobs across the entire metro — backyard courts inside 485 in Dilworth and SouthPark, HOA amenity builds in the Ballantyne and Providence corridors, church rec pads, private-club courts in Weddington and the Union County suburbs, and multi-court community centers. Every court we pour carries the same commitments regardless of scope.
Nothing collected up front. The invoice is settled after the pad clears our walk-through and the sleeves land right where your net-post kit calls for them.
Spec sheet in hand before we break ground. Court measurements, slope direction and grade, stone build, thickness, rebar type and spacing, joint pattern, sleeve placement, isolation detail, and the mix design are all documented on paper before any equipment rolls in.
Handoff aligned with whoever is coating your court. If a surfacing outfit is already booked, we release the pad with the finish and moisture-test protocol they will need on their end. If nobody is booked yet, we can list reputable NC-based surfacing crews we have released pads to previously.
Carrying full NC licensing and insurance. GC coverage, product liability, workers comp on every crew member, and site cleanup all built in — no surprise "disposal fee" or "cleanup fee" lines appearing on the invoice after the pour is done.
Pickleball Court
FAQ
The questions Charlotte-metro homeowners actually ask us about pickleball court — slab thickness, Piedmont clay prep, cure-time realities, deposit terms, and what the difference is between a pour that lasts a decade and one that cracks the first winter.
Get Free QuoteHow big does a backyard pickleball court need to be?
Playing area itself is 20 feet by 44 feet, but the pad you should be pouring is 30 feet by 60 feet (1,800 SF) at a minimum. That gets you 5-foot side buffers and roughly 8-foot baseline run-back, which is the smallest layout that still plays like a real court. If the lot supports 34×64 (2,176 SF), pour that instead — the extra concrete is a tiny fraction of the total build cost and it turns a court that feels tight every time somebody chases a lob into one that runs comfortably for competitive doubles.
What does a full pickleball court cost in North Carolina?
Which direction should a pickleball court slab slope?
How thick does the slab need to be?
When can the surfacing crew start coating the slab?
Do you install the net, fence, and acrylic surfacing too?
