Residential Concrete Foundations

The numbers under a residential foundation are what separate a slab that sits flat for forty winters from one that opens a drywall crack the first freeze after move-in. We put those numbers on paper at the quote stage, not on pour morning.

• Depth below grade — twelve inches under finished dirt is the standard Piedmont frost figure, deeper in the mountains, and occasionally eight inches out on the coastal plain. The local inspector holds the final word and we place to that number.
• Footing width — sixteen inches wide by eight inches deep is a common residential minimum, wider under load-bearing walls, columns, or garage door openings

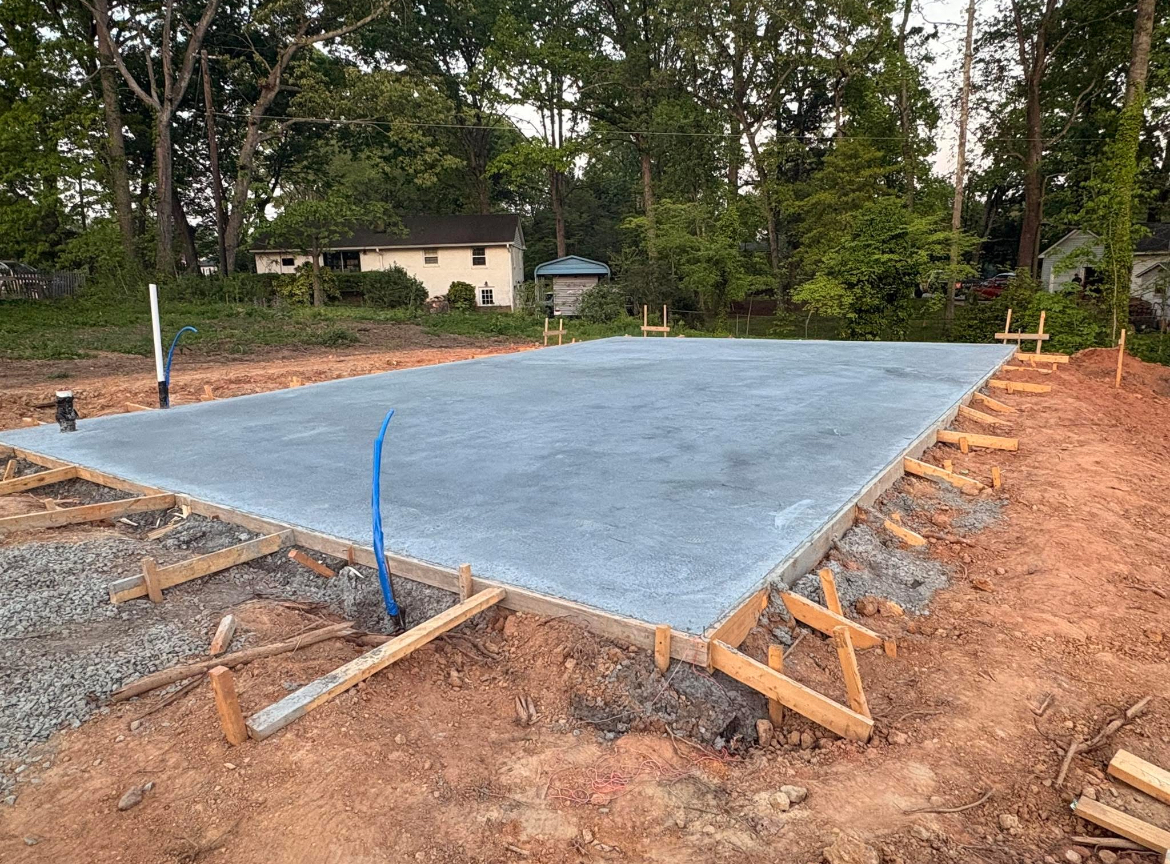

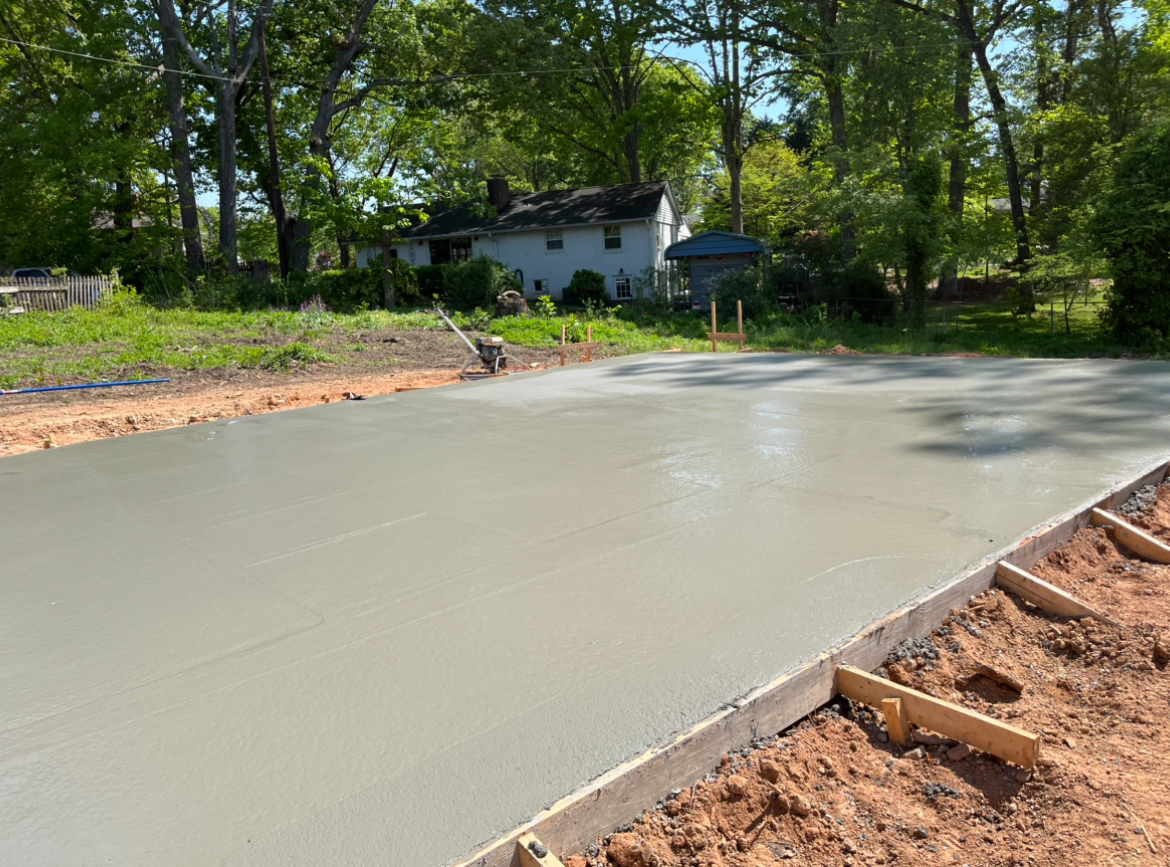

• Slab depth — four inches on light-storage buildings, four to five inches under residential garages, and six inches where lifts, RVs, or heavy machinery park

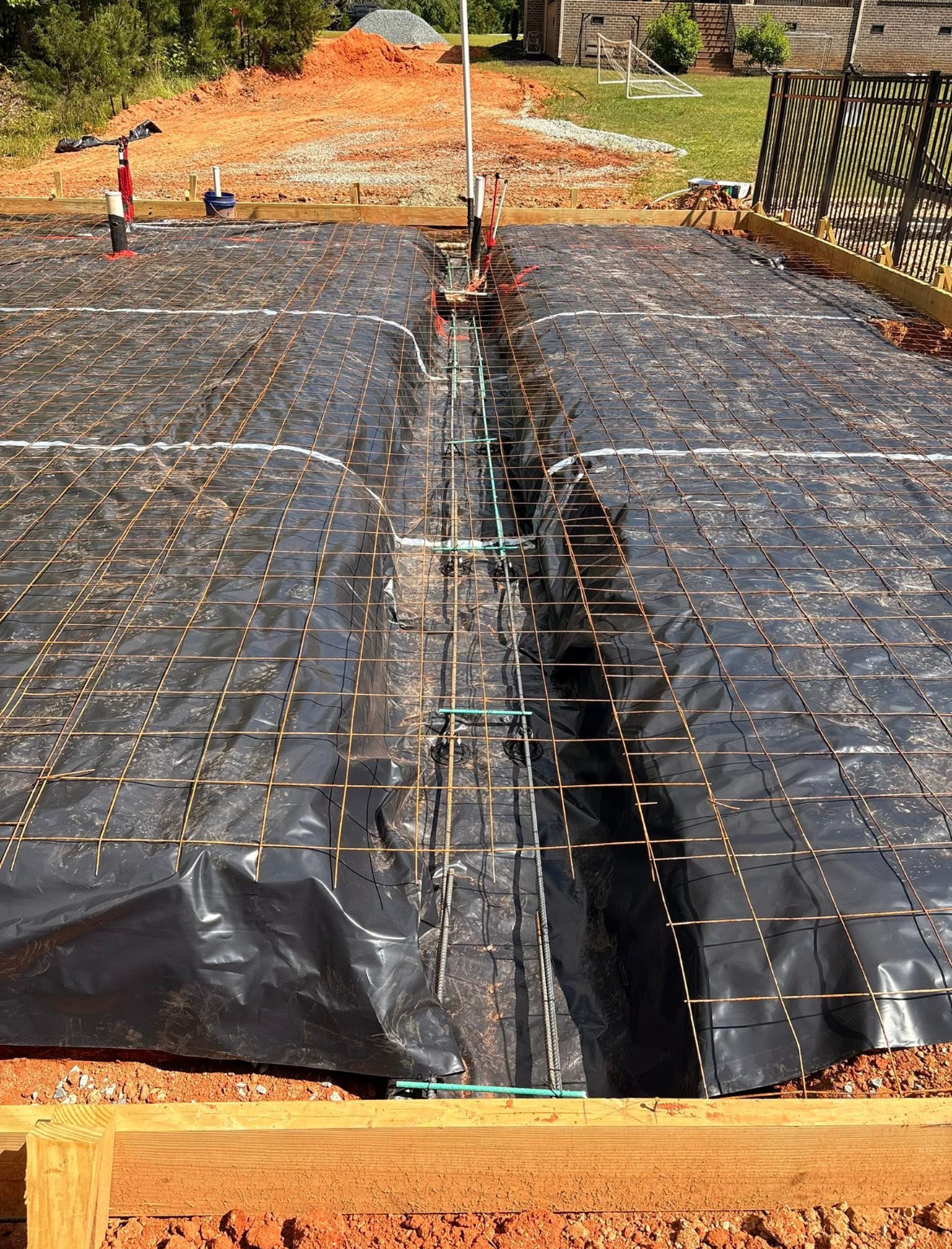

• Steel — number-four bars set at twelve to twenty-four-inch spacing running both directions is the working grid, with continuous bar carried through footings and lapped around any openings
• Welded wire fabric is an acceptable substitute on lighter-duty pours and is a legitimate choice on small storage structures if code permits

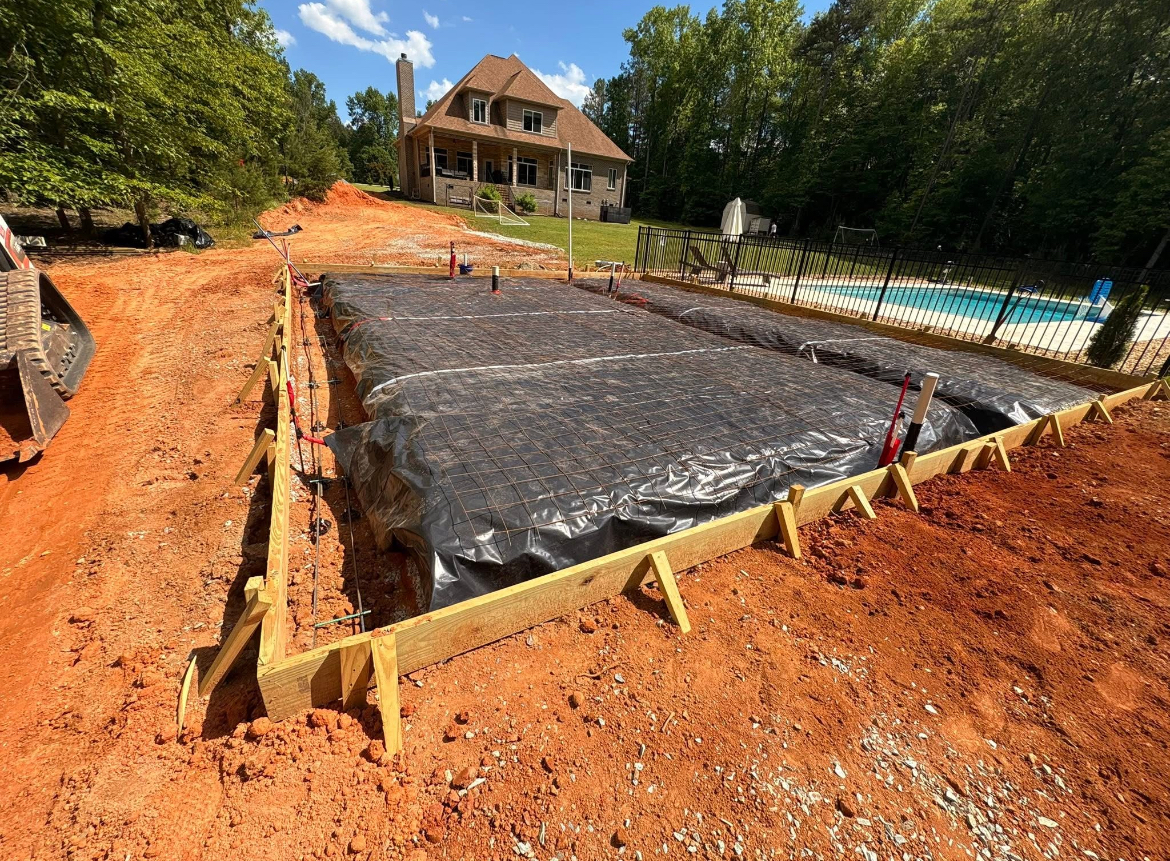

• Vapor retarder — six or ten mil poly sheet beneath the slab any time framing lumber, tools, or moisture-sensitive items will sit on it

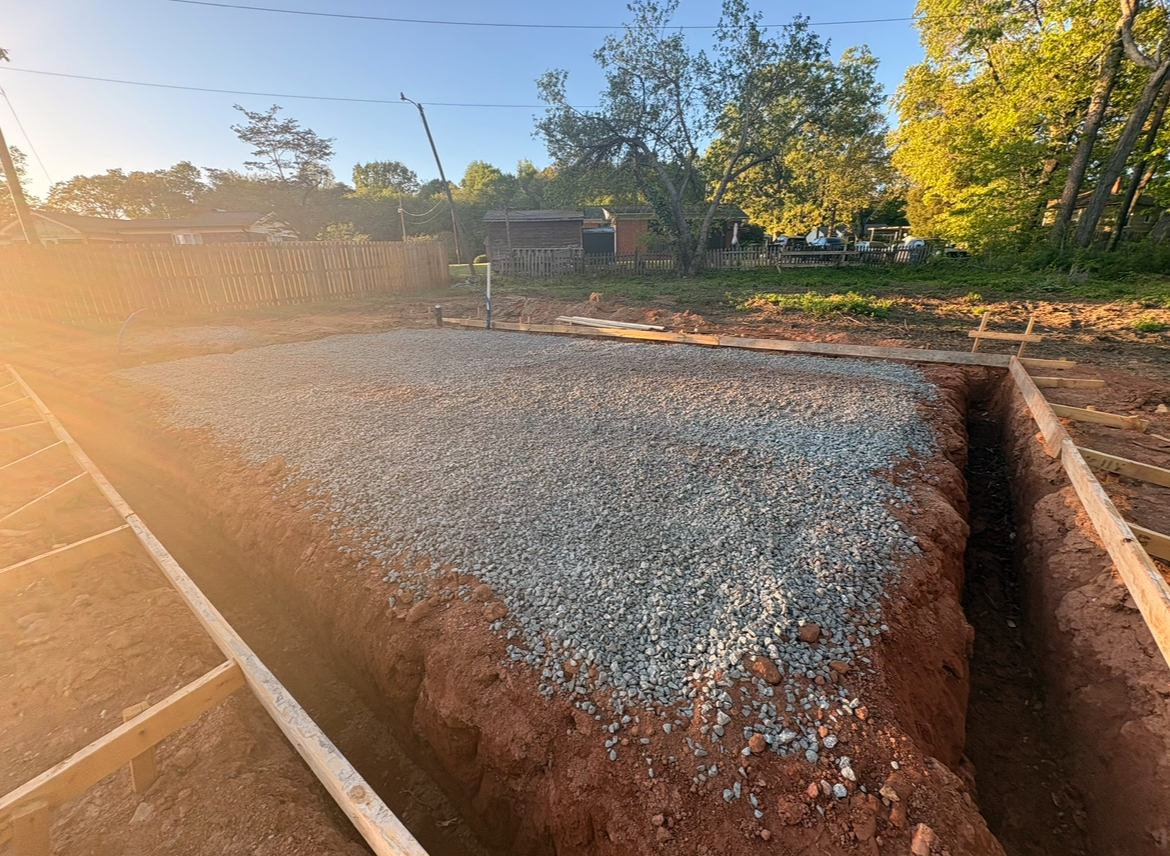

• Base gravel — four inches of compacted number 57 stone over a compacted subgrade is our working default, with extra depth on soft clay and less on well-draining sand
• Anchor hardware, hold-downs, and column base plates dropped into fresh concrete matching the framer's or building-kit template exactly

Every number above lands on the spec sheet you sign, in plain figures with no hidden allowances.

The dirt under a residential foundation acts very differently across North Carolina, and the footing detail has to be written for the soil you actually have, not the soil the plan set assumed.

• Red Piedmont clay swells with moisture uptake and contracts through dry spells — the annual cycle is enough to shift an under-sized footing far enough to crack drywall and bind interior doors. Wider bearing surfaces, deeper placement, and solid perimeter drainage matter more on this soil than almost anywhere else in the state.
• Coastal sandy ground drains quickly and does not swell, but it can shift beneath concentrated loads unless the footing spreads the weight adequately. Frost line is shallower, though bearing capacity typically becomes the design driver.
• Mixed mountain soils of rock and clay sometimes require a stepped footing so bearing stays on undisturbed dirt rather than fill
• Fill areas, cut-and-fill lots, and former topsoil zones must be assessed before any foundation goes down — placing concrete on uncompacted fill is how newer additions begin cracking inside two years
• Perimeter drainage details — grading pitched away from the foundation, downspouts discharging past the wall, and no puddles inside four feet — extend a foundation's life more than nearly any other single item
• Large trees standing within twenty feet of a Piedmont foundation deserve attention at the site walk — root systems draw moisture from clay and pull footings downward over the years

We walk the actual dirt with you, note what you have in front of you, and write the footing detail to that reality — no default number pasted from a stock plan that ignores what the site is telling you.
